One-side control means less disturbance to the wine zone — better stability for storage
This dual-door unit combines a wine cooler and a beverage refrigerator into one integrated solution, offering independent temperature zones for optimal storage of both wine and drinks. Designed with bottom ventilation for built-in installation and door-mounted controls for easy access, it provides a space-efficient and user-friendly solution for modern kitchens, bars, and hospitality environments.

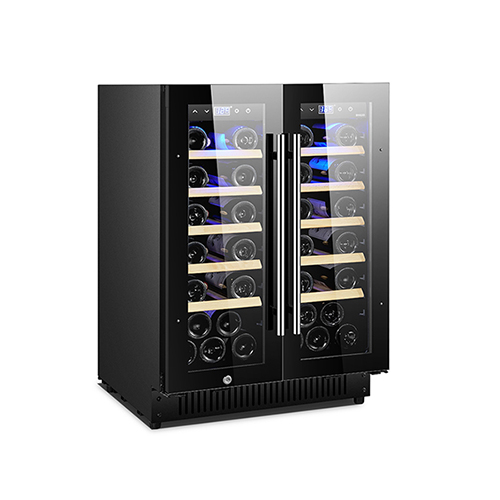

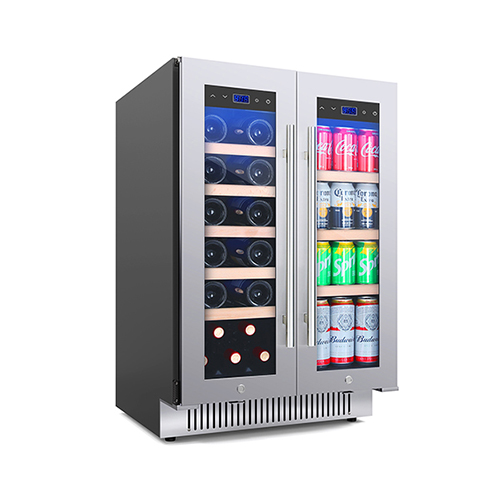

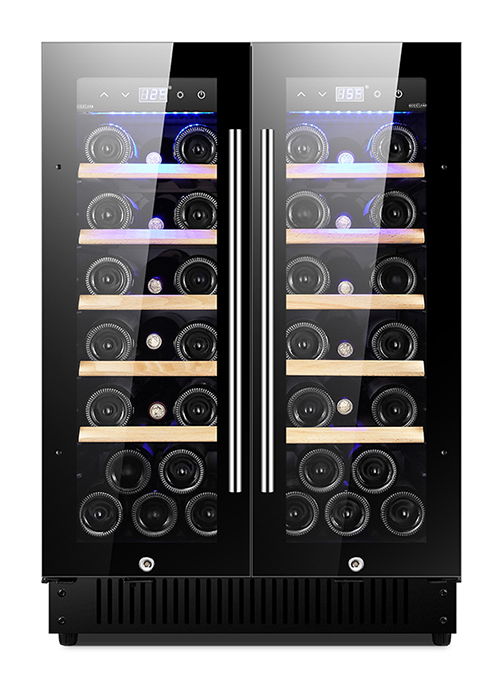

Built-in Dual-Zone Wine & Beverage Cooler
Independent zones for wine and beverages in one space-saving design
This under-counter dual-door unit combines a wine cooler and a beverage refrigerator in a compact, built-in design, offering a practical solution for kitchens, bars, and hospitality environments with limited space.
The left compartment is dedicated to wine storage, while the right side is designed for beverages, allowing different temperature settings for each zone to suit their specific requirements.
The upgraded control system is centrally located on one side, enabling both zones to be managed from a single interface. This design reduces the need to frequently open the wine compartment, helping maintain a more stable internal environment for wine preservation.
With front ventilation for seamless under-counter installation, the unit ensures efficient heat dissipation even in enclosed cabinetry. Additional features include precise temperature control, low vibration operation, insulated glass doors, and adjustable shelves for flexible storage.
Ideal for modern kitchens, apartments, and commercial settings, this model delivers a space-saving, user-friendly solution while enhancing wine storage stability.
OEM and customization options are available, including handle styles, door finishes, and internal configurations to meet different market needs.
| Control panel type | Button/Touch Control | |
| Body Color | Black Casing | |
| Interior Cavity Material | injection cabinet | |
| LED Light color | four color(blue/white/amber/lilac) | |
| Energy Efficiency | Class G | |
| Loading Capacity | 74 cans+21 bottles / 42 bottles | |
| Gross Volume | 114L (4.03 cu.ft) | |
| Installation type | Freestanding or under-counter | |
| Venting | Front venting | |
| Temperature Zone | Dual | |
| Shelf | Left Zone: 4pcs Glass shelf Right Zone: 6pcs Wood shelf |
|
| Gas / Refrigerant | R600a | |
| Climate Type | SN-T | |
| Temperature Range | Left Zone:2-20°C (36-68°F) Right Zone:5-20°C (41-68°F) |
|
| Body Size (not including handle) | W606xD600xH870 mm W23.8″xD23.6″x34.3″ |
|
| Packing Size | W666xD666xH920 mm W26.2″xD26.2″xH36.2″ |
|
| 20’gp container load(pcs) | 48 | |
| 40’gp container load(pcs) | 108 | |
| 40’hp container load(pcs) | 108 | |
| Net weight (KG) | 56 | |
| Gross weight (KG) | 60 | |
| Approval | GS/CE/CB/Rohs/ErP/NRTL | |
